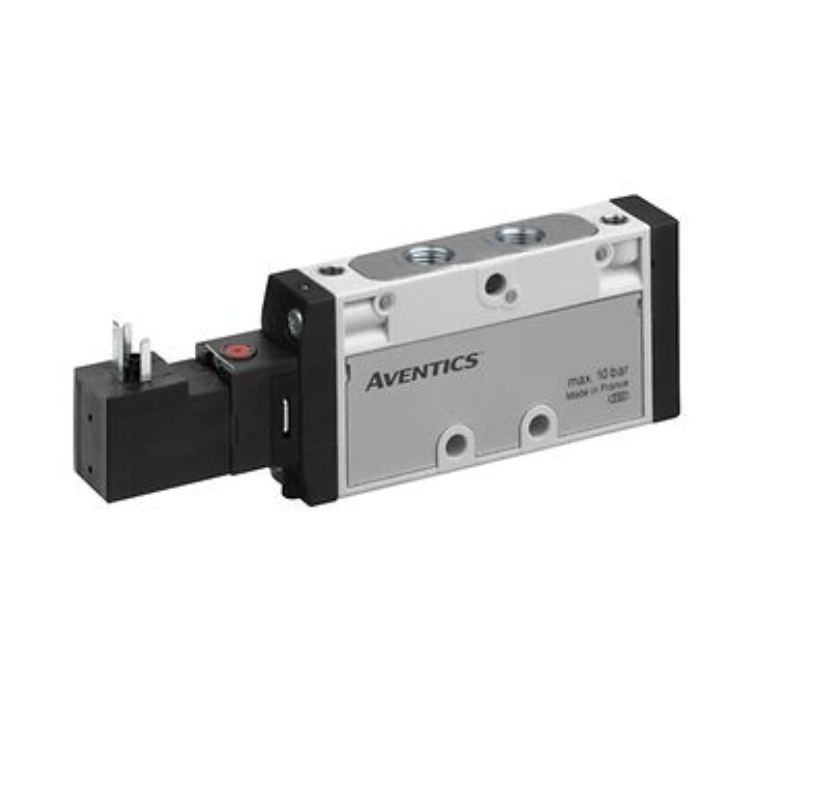

Activation Electrically
Switching principle 5/2, with spring/air spring return
Actuating control Double Solenoid
Manual override with detent
Pilot Internal
Nominal flow Qn 800 l/min
Compressed air connection output G 1/8
Min. working pressure 3 bar
Max. working pressure 10 bar
Operational↩voltage 24 V DC
Voltage tolerance DC -10 % / +10 %
