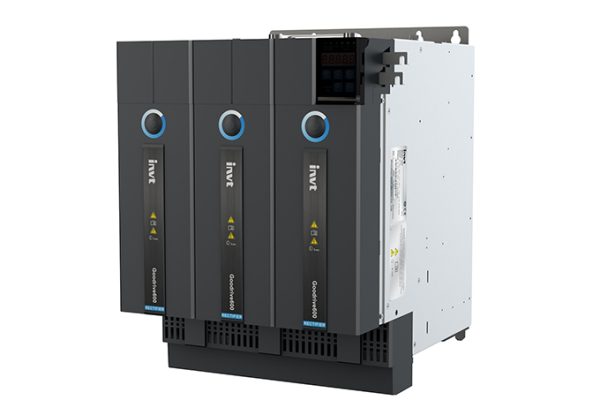

Upgrading the convenience of installation and maintenance of INVT GD600 multi drive frequency converter
1. Fast DC busbar overlap, significantly reducing installation time
The busbar connection of traditional multi drive frequency converters requires a lot of wiring and fastening work, which is time-consuming and laborious. The INVT GD600 series adopts a fast lap DC busbar design, where modules are directly connected through standardized busbars without the need for additional cables and terminals. Installation is simple and fast, saving over 50% of wiring time and costs.
2. Bus external terminal design, optimizing cabinet space layout
For cabinet structures with layered installation, traditional multi drive frequency converters often have problems with wiring difficulties and low space utilization in their busbar connections. The INVT GD600 series can be equipped with DC external terminals, which can lead the DC bus to different cabinet layers, solving the problem of layered installation and maximizing the utilization of cabinet space.
3. Independent buffer unit to achieve uninterrupted replacement of inverter units
The BUB600 series buffer unit is a DC power on buffer device designed by INVT specifically for the GD600 series. It is used in conjunction with air switches and bus external terminals to independently power on and off the inverter unit. When a certain inverter unit malfunctions, maintenance personnel can quickly replace the faulty unit without cutting off the power supply of the entire rectifier unit, ensuring the continuous operation of the production line.
