AVEENTICS 617 series Sentronic D proportional valve-ShouXin

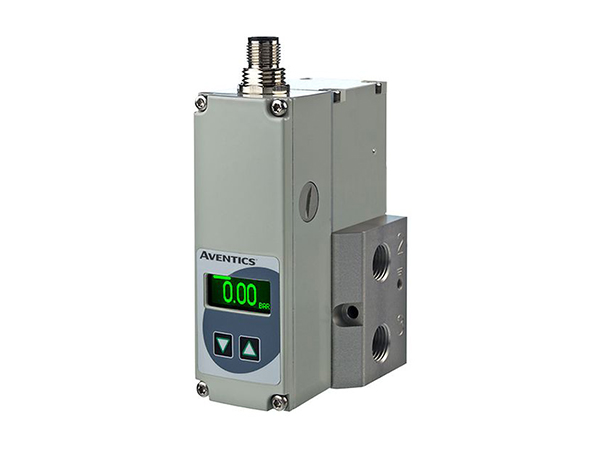

AVEENTICS 617 series Sentronic D proportional valve

The Antentics 617 series Sentronic LP (low-power) is an efficient and economical proportional valve that uses digital control, making it ideal for pressure regulation requirements. It has a small footprint and an easy-to-use modular design. Data acquisition software (DaS) and PC connection can be used to optimize valve control loop parameters for specific applications. This valve has low power consumption (<4 W), fast response, and integrated IO Link communication function.

Electromagnetic air pilot control
Maintain current pressure during power outage
Digital Communication and Control
Using data collection software can easily change control parameters
Optional display screen for quick setup and configuration
Integrated IO Link communication function
Provide vacuum service models and models with a maximum pressure of 10 bar (145 psi)
Function: Three way -3/2 normally closed
Valve actuation: proportional
Valve body material: Aluminum
Flow rate: 0.43 to 4.8 Kv, 0.5 Cv to 6 Cv
Voltage: 24 VDC
