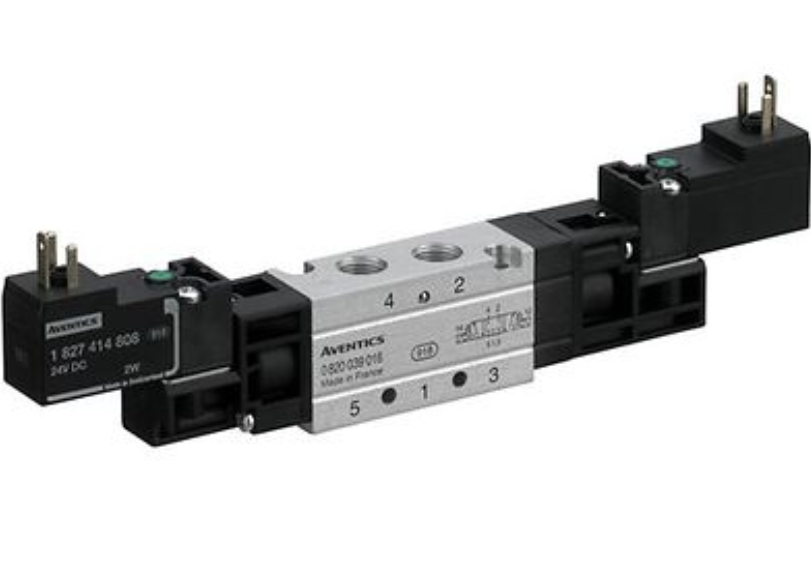

Activation Electrically Electrical connection size ISO 15217, form C
Nominal flow Qn 400 l/min Actuating control Double Solenoid
Switching principle 5/3 Sealing principle Soft Seal
Version Closed Center Pilot Internal
Compressed air connection output G 1/8 Pilot valve width 15 mm
Working pressure min. 2.2 bar Valve type Spool valve, positive overlapping
Working pressure max 10 bar Control pressure min 2.2 bar
DC operating voltage 24 V Control pressure max. 10 bar
Voltage tolerance DC -10% / +10% Electrical connection type Plug
Manual override with detent
