(AVEENTICS) 614 series SentronicPLUS proportional valve-ShouXin

(AVEENTICS) 614 series SentronicPLUS proportional valve

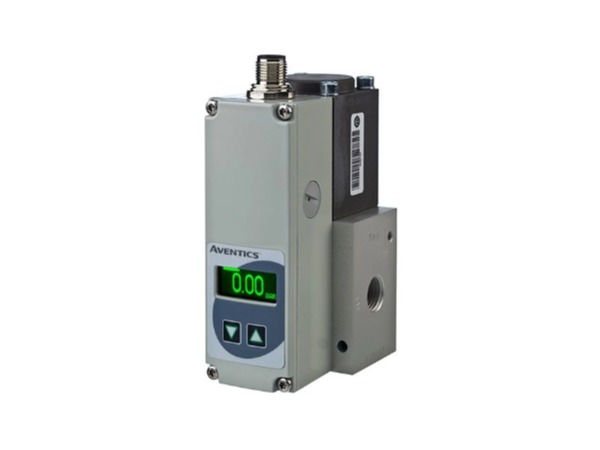

The AVEENTICS 614 series SentronicPlus is a digitally controlled, three-way proportional pressure regulating valve. It can accurately adjust pressure, flow rate, force, speed, and linear or angular position. Can control air and inert gas media. According to the ATEX Directive 2014/34/EU, its structure allows for use in potentially explosive environments. The component design of this valve can be controlled with extremely low hysteresis accuracy. By using Anwochi data acquisition software (DaS) and connecting to a PC, valve control circuit parameters can be easily configured and optimized according to specific customer requirements. This valve can be used for applications with high dynamic pressure requirements and has integrated IO Link communication capability.

Whether it is pressurization or depressurization, due to the same diameter of the valve port, the same rapid response can be achieved
Intelligent digital communication enables simple operations
Double loop control allows for easy configuration of process variables such as flow rate, force, speed, RPM, and temperature
The integrated display screen can easily monitor the valve status
DaS software allows for personalized settings to optimize control loop performance
We offer vacuum service models and high-pressure models up to 50 bar (725 psi) for you to choose from
Integrated IO Link communication function
Function: Three way -3/2 normally closed
Valve actuation: proportional
Valve body material: aluminum, brass, stainless steel
Voltage: 12 VDC, 24 VD
