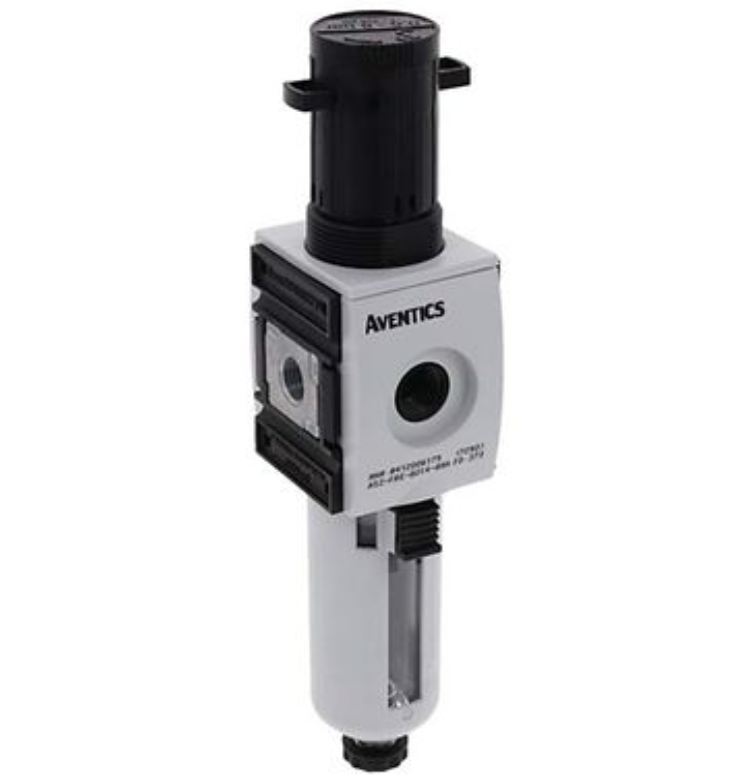

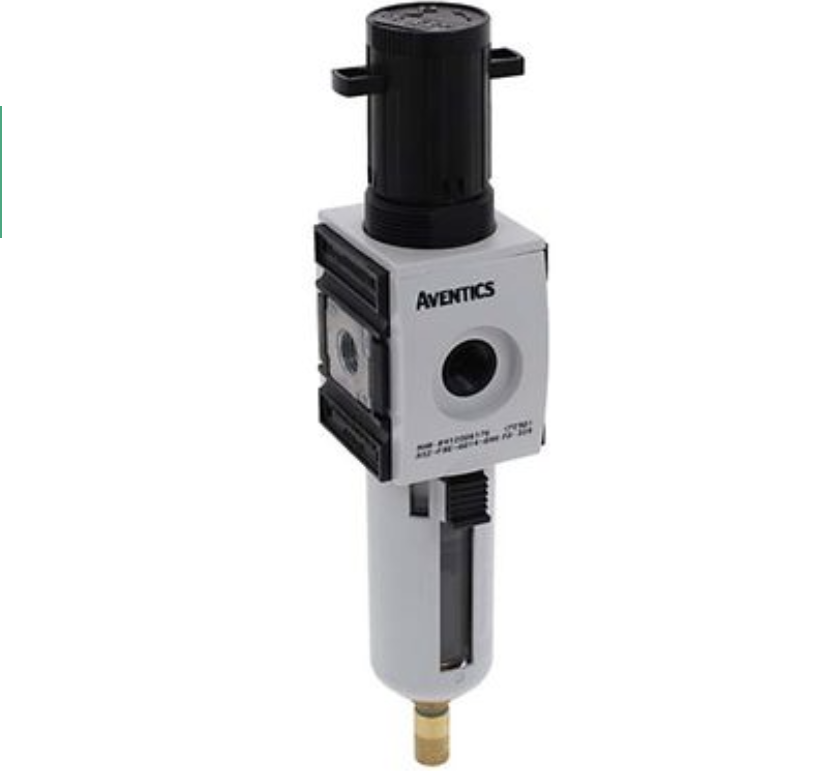

Parts    Filter pressure regulator
Reservoir     reservoir, polycarbonate, with PA protective guard
Port    G   1/4
Nominal flow Qn2100 l/min
Filter porosity5 µm
Condensate drain  semi-automatic, open without pressure
Pressure gauge without pressure gauge
Working pressure min.1.5 bar
Working pressure max16 bar
Min. ambient temperature-10 °C Max.
ambient temperature50 °C
Regulation range min.0.5 bar
