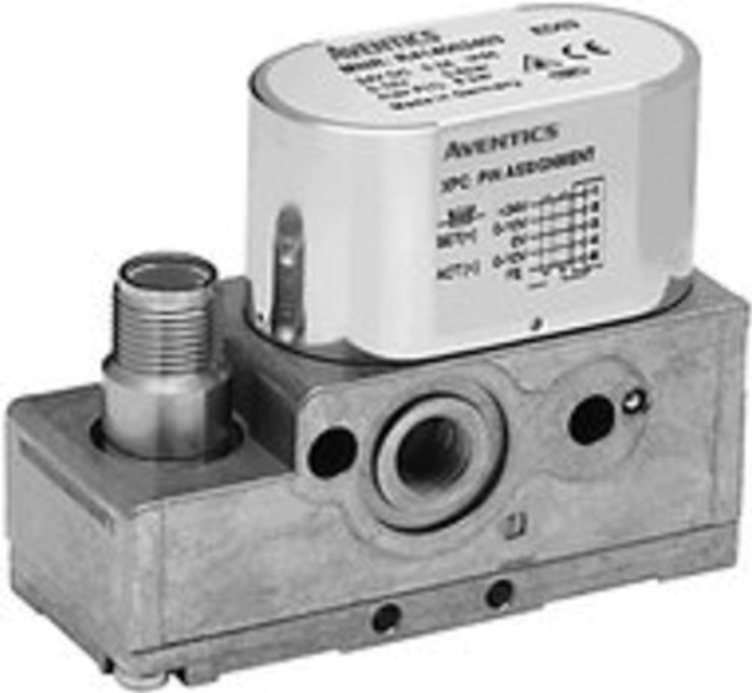

Excerpt:
Compact design
High control precision and dynamics
Suitable for a variety of applications
Manifold together with no additional base plate
TypePoppet valve
Certificates CE declaration of conformity
Working pressure min.0.5 bar
Working pressure max12 bar
Min. ambient temperature0 °C
Max. ambient temperature50 °C
Compressed air connection input1/8 NPT, G 1/8
Compressed air connection output1/8 NPT, G 1/8
MediumCompressed air
ControlAnalog
DC operating voltage24 V
Hysteresis< 0,05 bar
Mounting orientation±α = 0 ... 90° ±β = 0 ... 90°
Permissible ripple5%
Max. power consumption300 mA
Protection classIP65
Electrical connectionvia signal connection
Signal connectioninput and output
Signal connectionPlug
Signal connectionM12
